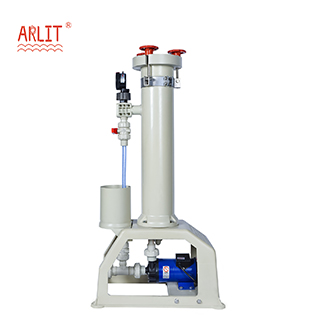

YLD Series PP Precision Filter
Introduction：
The filter tank is made of PP material by injection molding, and the filter bracket is made of imported CFRETFGE material. Used for solid - liquid separation of acid and alkali corrosive materials. Main features: acid and alkali resistance, high temperature resistance, corrosion resistance, idling resistance, no leakage, low noise, high efficiency, long service life. Widely used in electronic components and chemical industry pre-filtration.
Specification:
Outlet and inlet diameter：Chinese standard or Japanese standard
Connection Type: Union, Flange
Material：PP
Gasket / O-ring：EPDM, VITON
Filter cartridge：Pleated filter cartridge
Typical Applications:
Electronic industry: PCB, LED, etc.
Chemical industry: coating, metal and plastic plating, waster water and waster gas treatment, etc.
Technical parameters:
|
|
YLD-1001 |
YLD-1004 |
YLD-2001 |
YLD-2004 |
YLD-2006-1 |
|
|
Plating tank（ton）） |
|
0.2 |
0.6 |
0.4 |
0.8 |
1-2 |
|
Flow rate（L/min) |
|
15 |
60 |
30 |
80 |
150 |
|
Material |
|
PP |
PP |
PP |
PP |
PP |
|
Quantity of filter cartridge（Length * Quantity） |
|
10”×1 |
10”×4 |
20”×1 |
20”×4 |
20”×6 |
|
Max operating temperature（0℃） |
|
＜70 |
＜70 |
＜70 |
＜70 |
＜70 |
|
Pumping power |
|
45W |
180W |
65W |
260W |
0.75KW |
|
Size |
Length（A) |
520 |
620 |
520 |
620 |
760 |
|
Width（B） |
310 |
385 |
310 |
385 |
450 |
|
|
Overall height（mm) |
|
790 |
900 |
1015 |
1080 |
1420 |
|
Weight（KG) |
|
16 |
28 |
18 |
31 |
75 |
|
Outlet and inlet diameter |
|
3/4” |
1” |
3/4” |
1” |
1-1/2” |
|
Item / model |
|
YLD-2008-1 |
YLD-2008-2 |
YLD-2012-2 |
YLD-2018-3 |
YLD-3018-5 |
|
Plating tank（ton）） |
|
1-2 |
15-3 |
2.5-4 |
4-6.5 |
6.5-7.5 |
|
Flow rate（L/min) |
|
180 |
220 |
250 |
330 |
500 |
|
Material |
|
PP |
PP |
PP |
PP |
PP |
|
Quantity of filter cartridge（Length * Quantity） |
|
20”×8 |
20”×8 |
20”×12 |
20”×18 |
30”×18 |
|
Max operating temperature（0℃） |
|
＜70 |
＜70 |
＜70 |
＜70 |
＜70 |
|
Pumping power |
|
0.75KW |
1.5KW |
1.5KW |
2.2KW |
3.75KW |
|
Size |
Length（A) |
760 |
760 |
800 |
800 |
800 |
|
Width（B） |
450 |
450 |
580 |
580 |
580 |
|
|
Overall height（mm) |
|
1420 |
1420 |
1420 |
1420 |
1760 |
|
Weight（KG) |
|
82 |
86 |
118 |
118 |
128 |
|
Outlet and inlet diameter |
|
1-1/2” |
1-1/2” |
1.5” |
2” |
2” |
