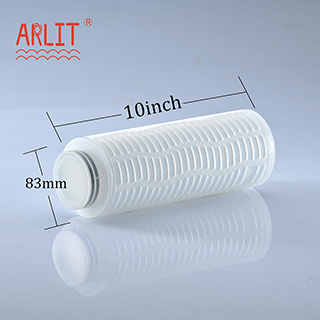

OD 83mm Series Filter Cartridge

83 Series Filter Cartridge

Introduction

ARLIT 83 series filter cartridges are designed for high flow rate, mainly used for electronic industry, liquid filtration of liquid crystal display (LCD) processes. It is suited for most LCD wet processing applications, such as substrate cleaning, etching, stripping and DI water flushing. Provide a wide range of pore size from 0.1μm to 60μm. With high flow rate, small resistance, long service life, stable performance and wide chemical compatibility, enabling stable process conditions. It also can be used for liquid filtration of acids, alkali and solvent.

Specifications and technical parameters

Filter medium: PP membrane, PTFE membrane, PES membrane

Support layer: PP

Filter cage: PP

Pore size: 0.1、0.22、0.45、0.65、1、3、5、10、20、30、60 (um)

Length: 220mm, overall length 240mm

Gasket/O-rings: Silicone, NBR, EPDM, Viton

Sealing technique: thermal bonding

Effective filtration area: ≥0.65～1M²/10”

Diameter: 83.0mm

Max. operating temperature: 80℃，0.28Mpa

Max. forwarder differential pressure: 0.40Mpa（25℃）

Max. reverse differential pressure: 0.25Mpa（25℃）

End caps: 222, 226

Sterilizing temperature: 121℃ 30min

Others: special requirement can be customized

Typical Applications

Electronic industry: LCD wet process

Electronic industry: Semiconductor process

Electronic industry: filtration for chemicals and pure water

Chemical industry: filtration for organic solvent

Pure water flow rate reference table: the initial value of 10＂cartridge L/min （△P=0.01MPa, 1cP, 25℃）

Micro rating (um)	0.1	0.22	0.45	0.65	1	3	5	10	20	30	60
Flow rate (L/min)	8.0	20.0	50.0	65.0	80.0	90.0	100.0	105.0	110.0	115.0	120.0
