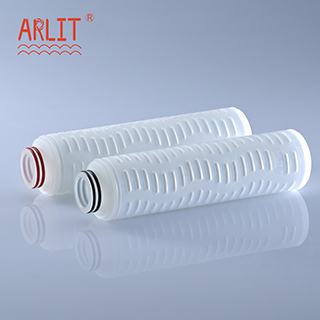

PES Micropore Filter Cartridge
PES Micropore Filter Cartridge
 |
|
Introduction
|
| The filtration media of PES micropore filter cartridge is PES membrane. High porosity (about≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: unique hydrophily, no including surfactant and lubricant, so it provides wide filtration pore size and high flow rate. Its wide range of PH values and lower adsorbance of protein and valuable biologicals, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressures. All products have passed 100% integrity testing. |
|
Specifications and technical parameters
|
|
Filter medium: hydrophily PES membrane Support layer: PP Filter cage:PP Pore size: 0.1、0.2、0.45、0.65、1(μm) Length: 5"、10"、20"、30"、40" Gasker/O-rings: Silicone, NBR, EPDM, Viton Sealing technique: thermal bonding Effective filtration area: ≥0.6 ㎡/10" Diameter: 69.0 mm Max. operating temperature: 85℃，0.05 MPa Max. bear temperature: 140℃，0.28 MPa Max. forwarder differential pressure: 0.42 MPa（25℃） Max. reverse differential pressure: 0.21 MPa（25℃） Sterilizing temperature: 121℃ 30 min Others: special requirement of diameter and end caps can be customized |
|
Typical Applications
|
|
Pharmacy industry：final filtration of injecta, eye drops，non-high temperature sterilization products, biologicals, vaccine, serum Food industry: wines, mineral water, drinking water, beverage Electronic industry: final filtration of high purity water and chemical raw materials |

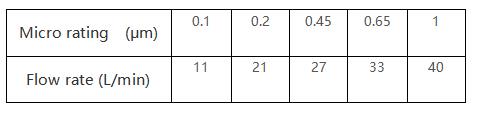

| Pure water flow rate reference table: the initial value of 10＂cartridge L/min （△P=0.01MPa, 1cP, 25℃） |
 |
