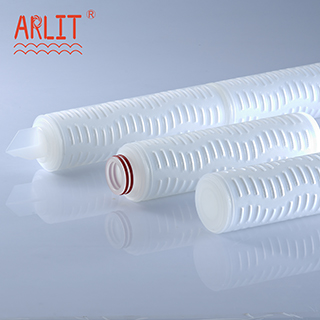

PTFE Micropore Filter Cartridge (hydrophily)
PTFE Micropore Filter Cartridge (hydrophily)
 |
|
Introduction
|
|
The filtration media of PTFE micropore filter cartridge is hydrophily PTFE membrane. It is constructed of two materials PTFE and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: stable hydrophily, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressures. All products have passed 100% integrity testing. The biological safety and endotoxin guideposts are in accord with FDA and Chinese Pharmacopoeia. |
|
Specifications and technical parameters
|
|
Filter medium: hydrophily PTFE membrane Support layer: PP Filter cage: PP Pore size: 0.05、0.1、0.2、0.45、1 (μm) Length: 5"、10"、20"、30"、40" Gasket/O-rings: Silicone, NBR, EPDM, Viton Sealing technique: thermal bonding Effective filtration area: ≥0.6 ㎡/10" Diameter: 69.0 mm Max. operating temperature: 80℃，0.17 MPa Max. bear temperature: 140℃，0.27 MPa Max. forwarder differential pressure: 0.42 MPa（25℃） Max. reverse differential pressure: 0.28 MPa（25℃） Sterilizing temperature: 121℃ 30 min Others: special requirement of diameter and end caps can be customized |
|
Typical Applications
|
|
Medical industry: sterile filtration of raw material pharmacy, medical liquid degerming Chemical industry: filtration for organic solvent, various alcohols, chemical reagent Food industry: wine, beverage, grape, wine |

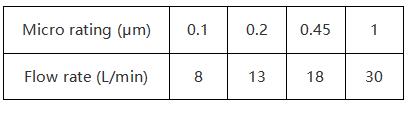

| Pure water flow rate reference table: the initial value of 10＂cartridge L/min （△P=0.01MPa, 1cP, 25℃） |
 |
