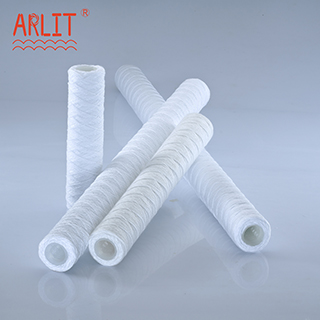

Honeycomb Wire Wound Filter Cartridge
 |
|
Introduction
|
| The filtration media of honeycomb wire wound filter cartridge is absorbent cotton or glass fibre as the material. The absorbent cotton cartridge is made by pure natural cotton after processing, degreasing, spinning into yarn and wind on the PP or stainless steel porous frame. The glass fibre cartridge is made by winding glass fiber on the PP or stainless steel porous frame. The benefit summary: used to filtration of low viscosity and low impurity, small resistance, large flow rate, strong dirt holing capacity, corrosion resistance, withstand high temperatures, good pressure resistance and wide chemistry compatibility. |
|
Specifications and technical parameters
|
|
Filter medium: absorbent cotton/ glass fibre Support layer: PP/ stainless steel Relative filtration pore size: 1、3、5、10、20、30、50、80、100 (μm) Length: 5"、10"、20"、30"、40" Outer diameter (OD) : 58.0 mm～65.0 mm Max. operating temperature: ≤80℃ Max. positive pressure: ≤0.4 MPa Max. back pressure: ≤0.2 MPa Others: special requirement of diameter and end caps can be customized |
|
Typical Applications
|
|
Chemical industry: filtration for electroplating solution, acidic or alkaline liquid of chemical processing, organic solvent |
| Pure water flow rate reference table: the initial value of 10＂cartridge L/min （△P=0.01 MPa, 1cP, 25℃） |
 |
